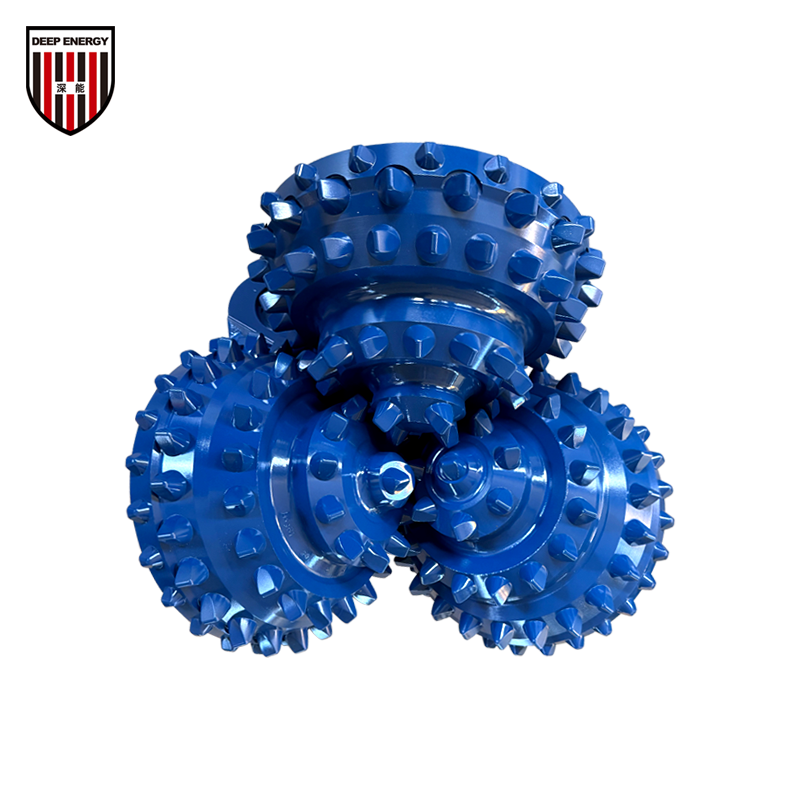

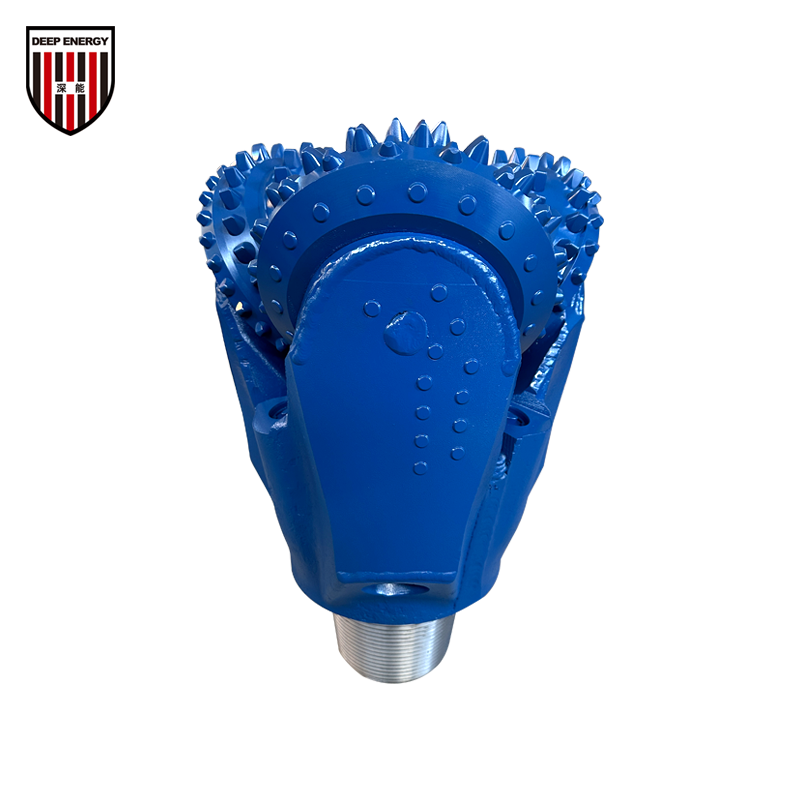

16″(406mm)IADC537 Tricone Drill Bits Following API Spec 7 Standard

Contact Now

Specifications

Diameter	16″(406mm)
Bearing Type	Elastomer sealed bearing
Tooth Type	TCI(Tungsten Carbide Inserts)
Circulation Type	Mud fluid
Thread Connection	7 5/8 reg pin
Gauge Protection	Available
Shirttail Protection	Available

Operating Parameters

RPM(r/min)

140-60

WOB(KN)

142-406

Formations

Soft to medium formation with low compressive strength, such as mudstone, gypsum, salt, soft limestone, etc.
