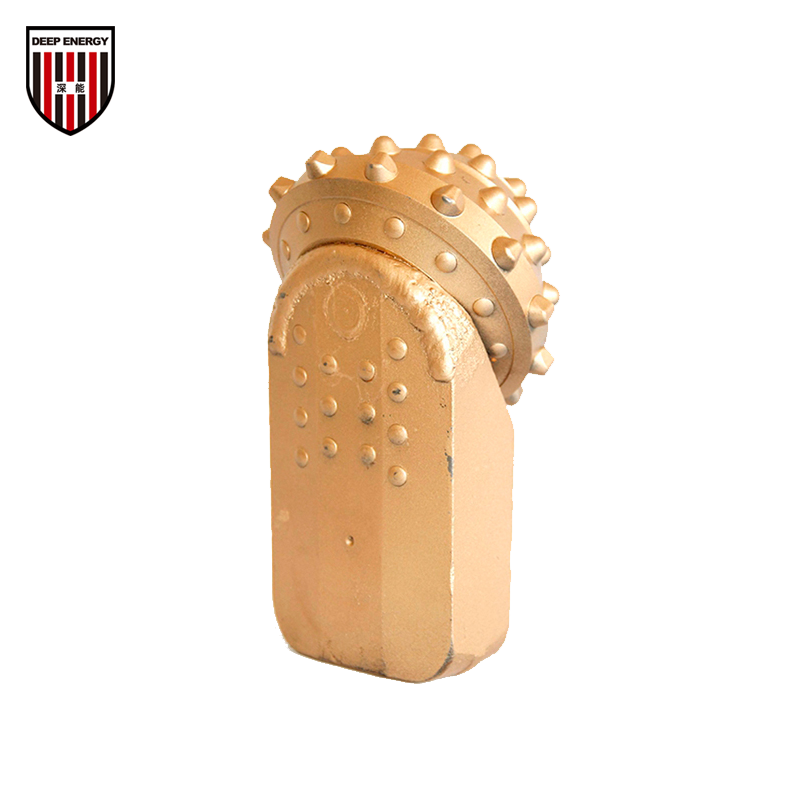

C133 Series Replaceable Type
Bearing Structure
Features of C133 Series
| 1 | Journal sealed bearing with TCI protection on heel of cones |
| 2 | Cone1、2、3 speed up rock breaking rate |
| 3 | Shirttail hard enhanced by Tungsten Carbide |
| 4 | C133-537 adopts 14mm chisel TCI, C133-637 adopts 13mm conical-ball TCI |
| 5 | C133 series roller cones has very high cost-effectiveness, it is regular model in rotary drilling field |
Technical specification of roller cone bit C133
| Raw Material | |||||||||||
| Cone | 20CrNiMo | ||||||||||
| Arm | 20CrNiMo | ||||||||||
| Tooth | Tungsten Carbide Inserts | ||||||||||
| Tooth Type | |||||||||||
| Tooth Qty.&Diameter | Cone1: 43PCS / 13mm, Cone2: 45PCS / 13mm, Cone3: 41PCS / 13mm | ||||||||||
| Tooth Height | Total height: 17mm, inside height: 10.5mm, outside height: 6.5mm | ||||||||||
| Bearing and Lubrication | |||||||||||
| Tungsten carbide enhanced on bearing |
|
||||||||||
| Grease Lubrication & Bearing Seal |
|
||||||||||
Developed in year 2013, this square arm roller cone bits is almost the first square arm roller cone bits famous in foundation rock piling field in China and the world, it is still in hot selling from year 2013 by its high cost-performance, so we name it “Classical Roller Cone Bits-Generation 1” in piling field.
The first batch for testing in Shenzhen China at year 2013 reached 65 meters depth in drilling 120MPa hardness rocks, high drilling speed and perfect performance makes it popular in China and South-East Asia rapidly and copied by many factories.

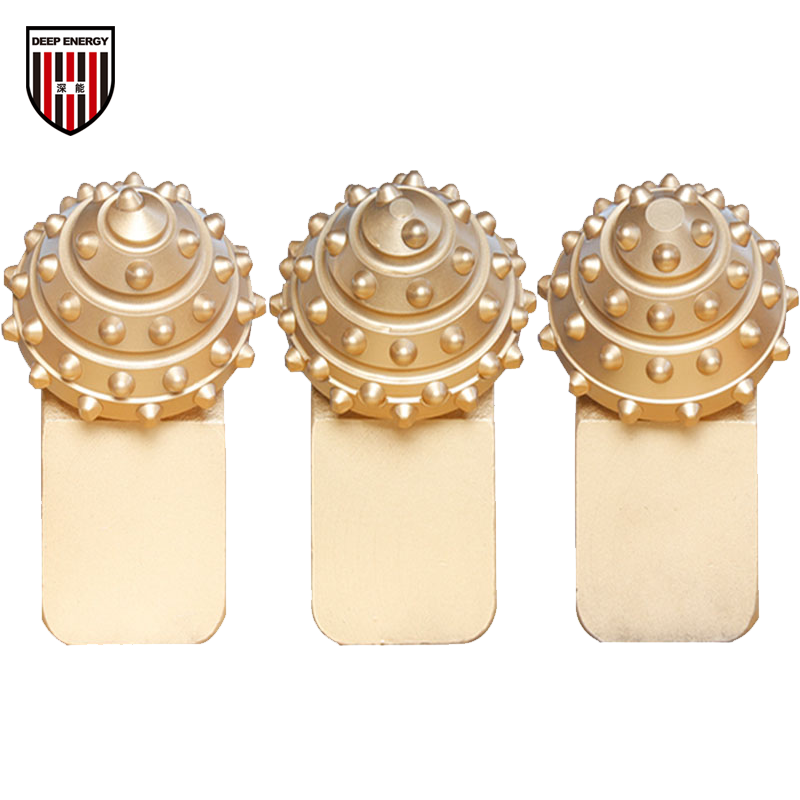

One set of classical roller cone bits has Cone 1, Cone 2, Cone 3, they have same shapes, length of Tungsten Carbide inserts(teeth) with bit-thirds (1/3) of Tri-cone bits, the 3 cones works together could get higher penetrating rate and faster drilling down speed to save cost.
