Categories: Foundation Series, Roller Cone Bits

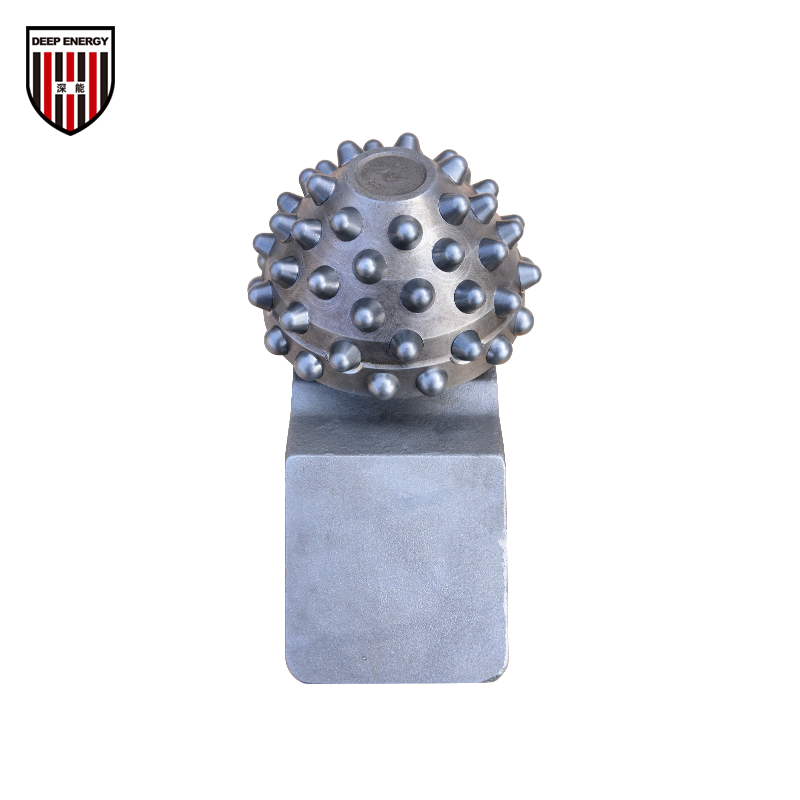

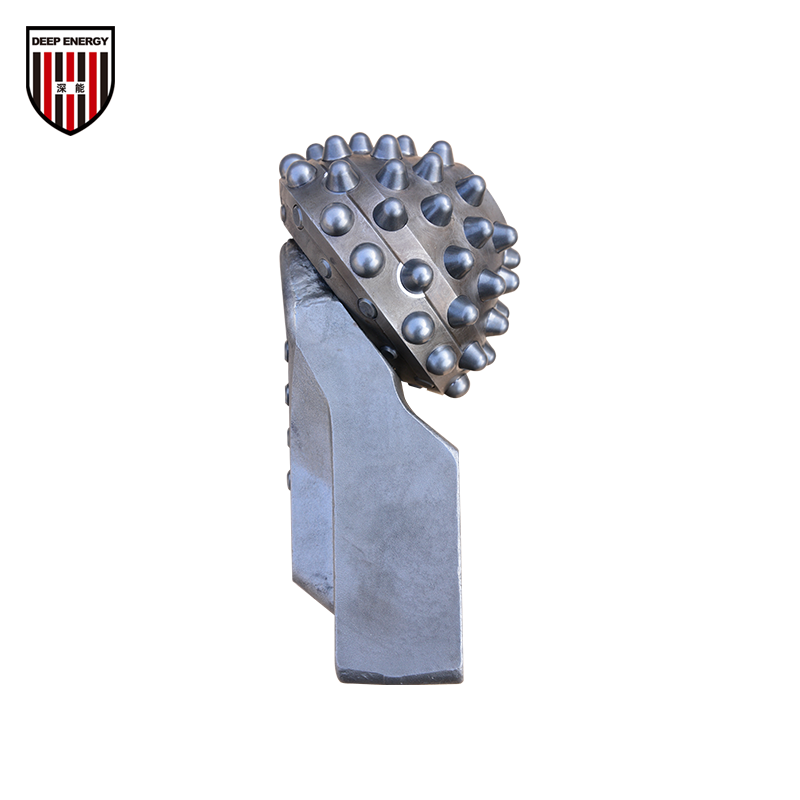

Technical specification of roller cone bit NG1(56/9)
| Raw Material | |||||||||||
| Cone | 15MnNi4Mo | ||||||||||
| Arm | 20CrNiMo | ||||||||||
| Tooth | Tungsten Carbide | ||||||||||
| Tooth Type | |||||||||||
| Tooth Qty.&Diameter | 56 PCS / 14mm | ||||||||||
| Tooth Height | Total height: 20.3mm, inside height: 11.3mm, outside height: 9mm | ||||||||||
| Bearing and Lubrication | |||||||||||
| Tungsten carbide enhanced on bearing |
|
||||||||||
| Grease Lubrication & Bearing Seal |
|
||||||||||
